43
Seating Capacity
-
E474
Engine
-
120 HP
Power
-
350 Nm
Torque
-
Diesel
Fuel Type
Seating Capacity
Engine
Power
Torque
Fuel Type

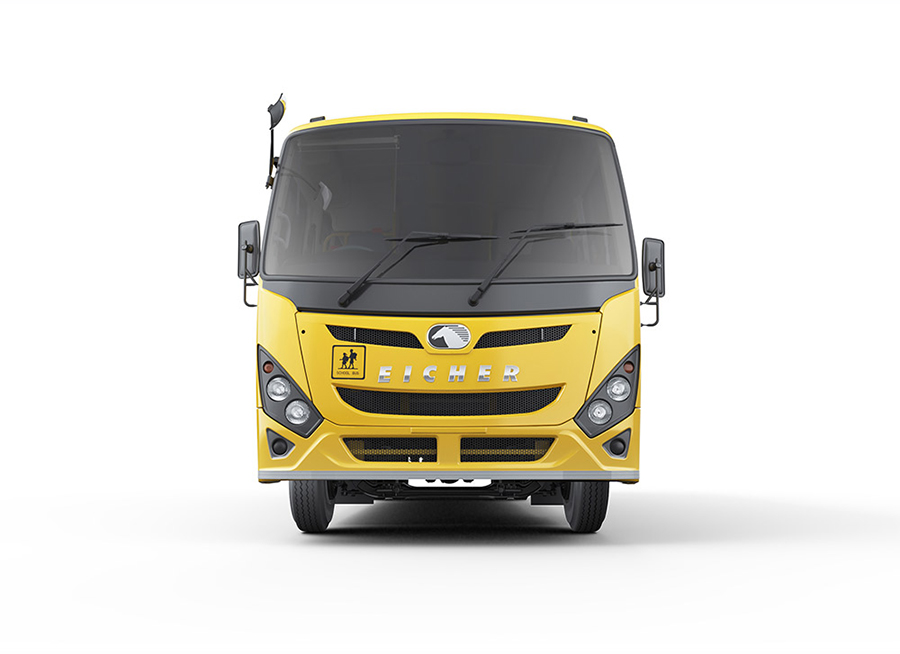

The all new Skyline is completely revamped with distinctively premium looks, 2350 mm wide bus body, silent & grease free parabolic suspension and radial tubeless tyres. Skyline school buses offer the right blend of safety, comfort and performance to ensure that every journey of the students is safe and comfortable. BSVI skyline is driven by state-of-the-art E474 engine which provides powerful performance. Its superior fuel efficiency coupled with lower maintenance cost leads to high profitability.
| SPECIFICATIONS | 2075 H |
|---|---|
| Seating Capacity | 41+1+D (3X2) |
| Wheelbase (mm) | 4320 |
| Overall Length (mm) | 8112 |
| Overall Width (mm) | 2350 |
| Overall Height (mm) | 2765 |
| Min Ground Clearance (mm) | 187 |
| Front Overhang (mm) | 1200 |
| Rear Overhang (mm) | 2592 |
| Turning Circle Diameter (m) | 16 |
| Engine Make | E474 |
| Displacement (cc) | 2960 |
| Power | 120hp (90kW) @ 3200 rpm |
| Torque | 350Nm @ 1200-2500 rpm |
| Clutch (mm) | 310 |
| Transmission Make | ET35S5 |
| Transmission Type | synchromesh (5 Speed,1 Rev) |
| GVW (Tonnes) | 8.4 |
| Chassis Type | Domex 650 |
| Chassis C frame dimensions (mm) | 200x65x5 |
| Fuel Tank Capacity (l) | 100 |
| Brakes | Dual Circuit 'S' Cam Full Air brakes |
| Tyres | 235/75 R17.5- 14PR (Radial Tubeless ) |

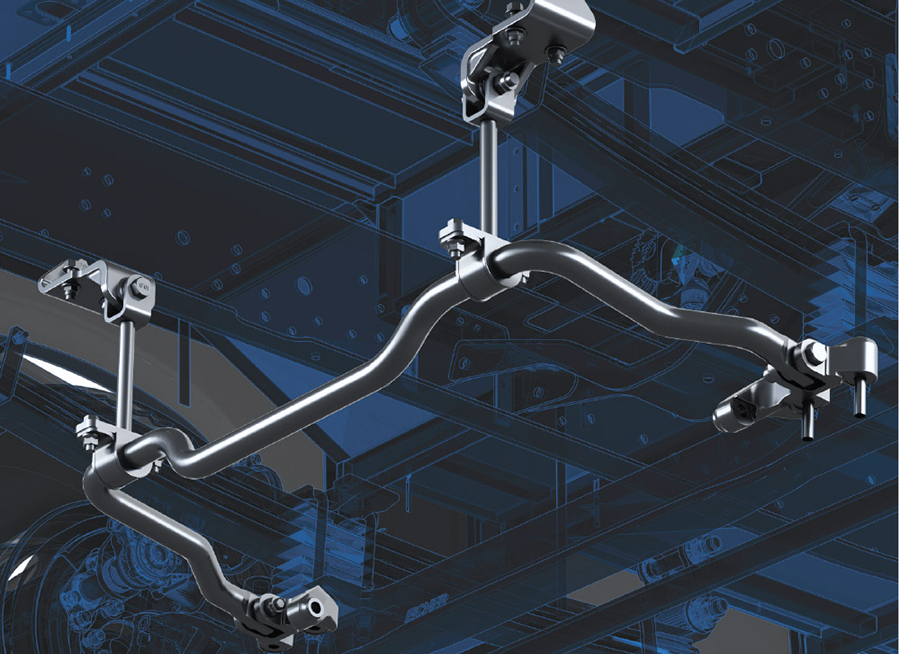

| Suspension Front | Parabolic with Anti-Roll Bar |
| Suspension Rear | Parabolic |
| Steering | Power Steering |
| Battery | 12V 130Ah |
| Alternator | 110A |

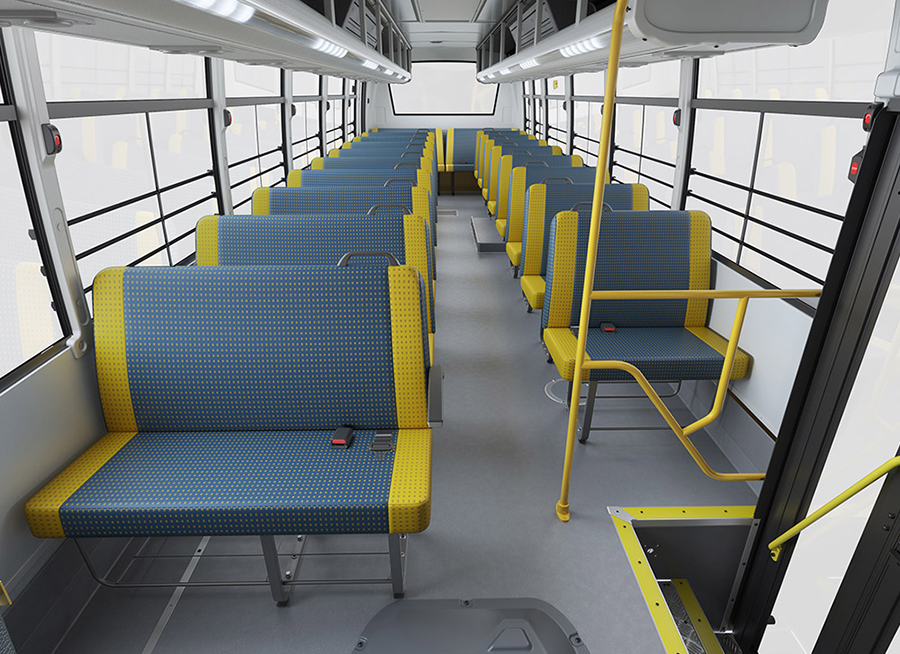

| Flooring | Vinyl |

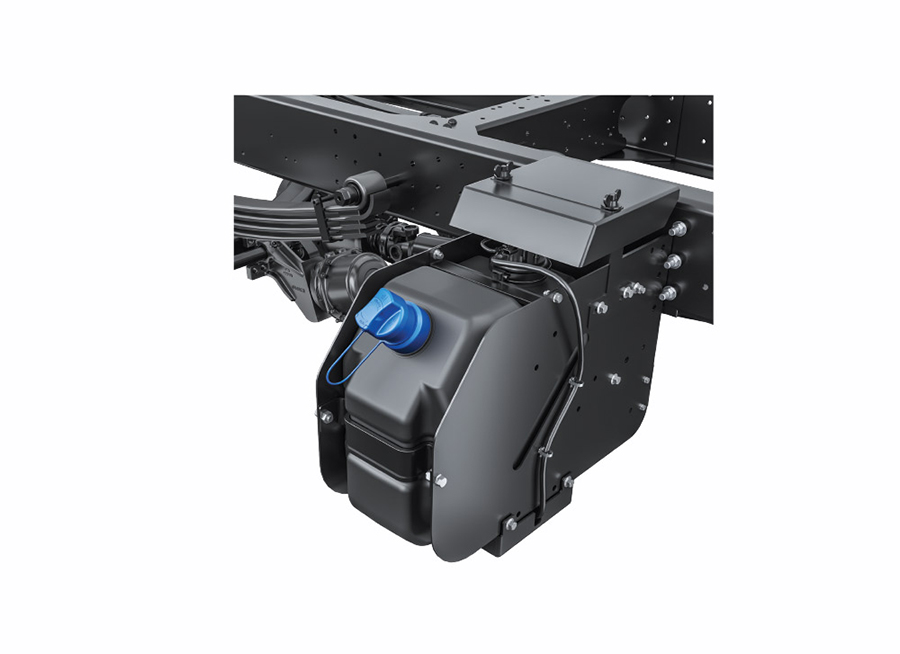

| DEF Tank Capacity (l) | 19 |

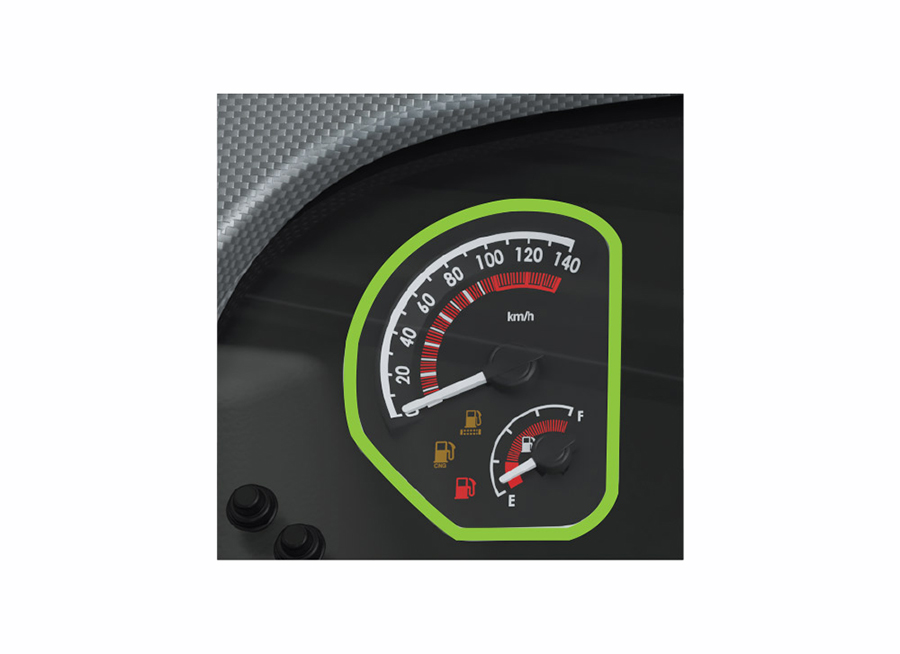

Fuel coaching personally guides the driver towards the right selection of gear and rpm to help achieve higher fuel economy

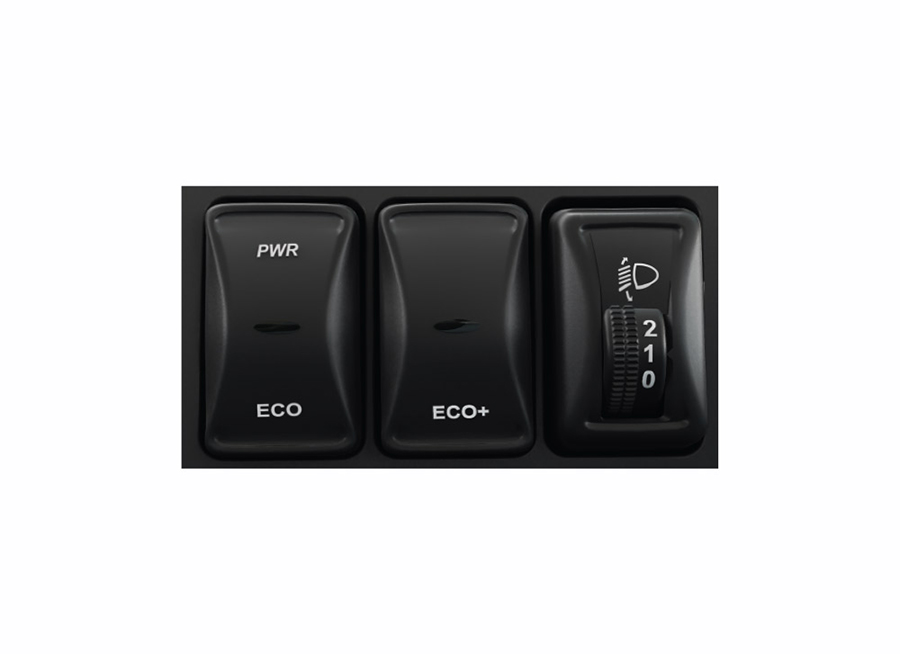

MBooster+ allows the driver to drive in different modes of load and gradient to achieve best-in-class fuel efficiency
Cruise control maintains speed/rpm without pressing ABC control pedals which leads to fatigue-free driving and higher fuel economy
An innovative and intelligent telematics system, Eicher Live facilitates in keeping a track of fuel consumption, maintenance needs, and monitoring the movement of buses.

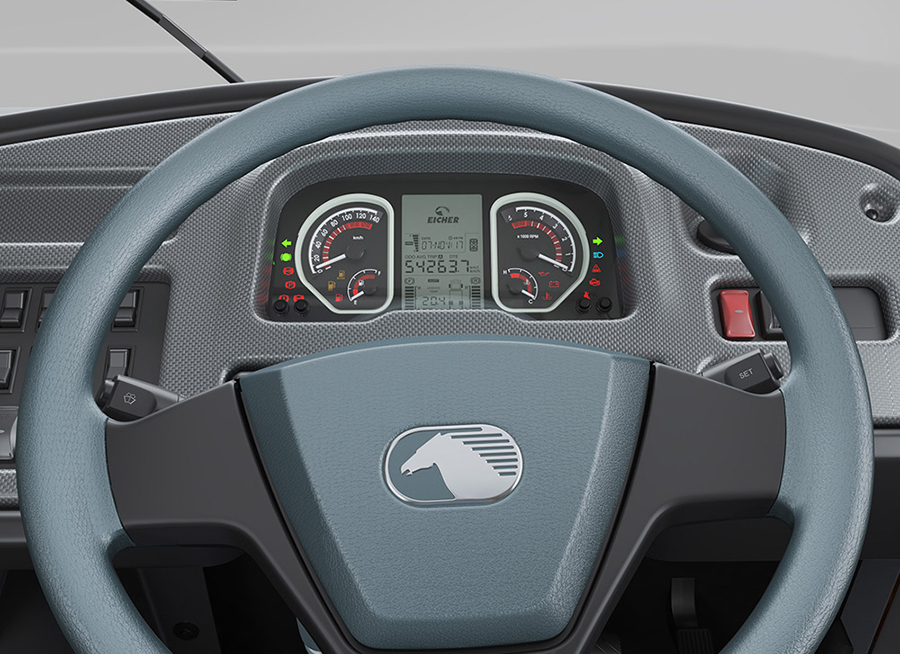

Intelligent Driver Information System keeps you aware of all the runtime information of the bus

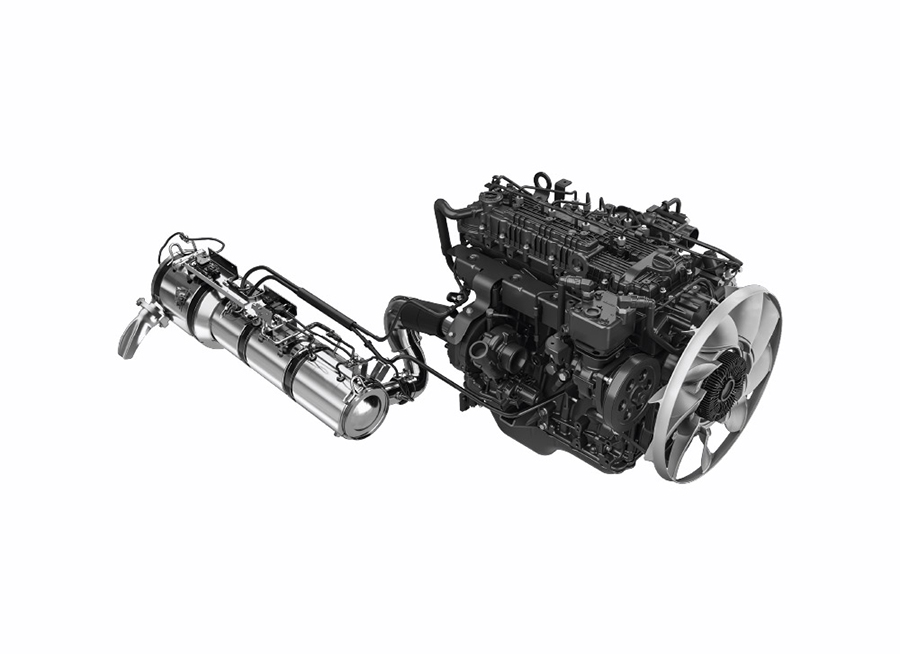

This engine offers dual benefits of high power and high fuel efficiency
